Stik Pusher

900_DSC_3901

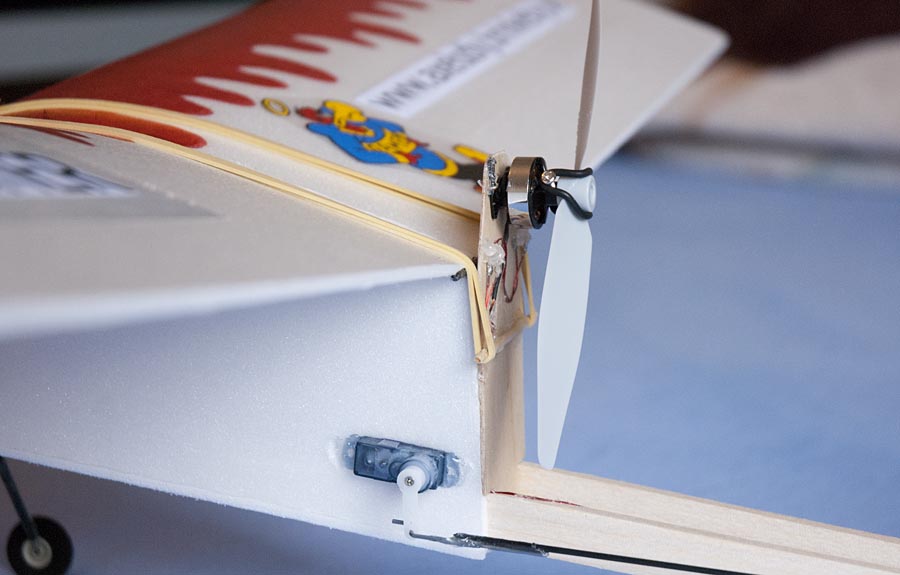

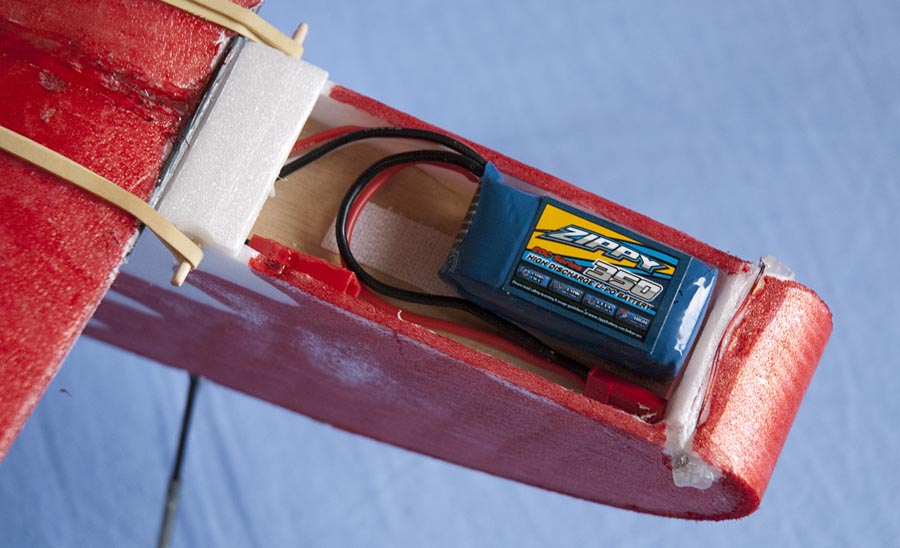

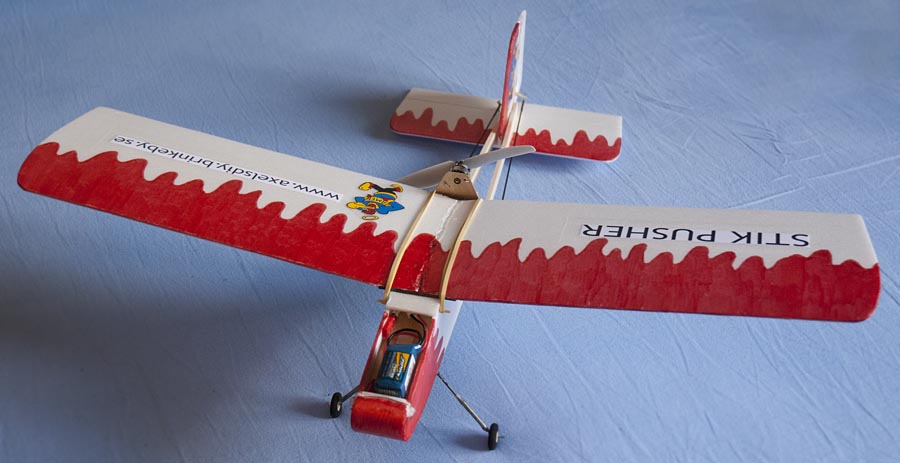

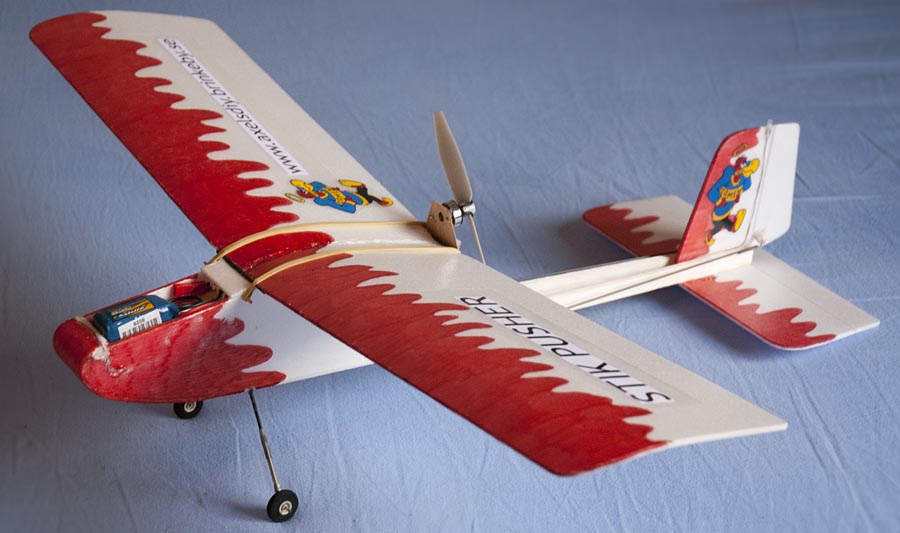

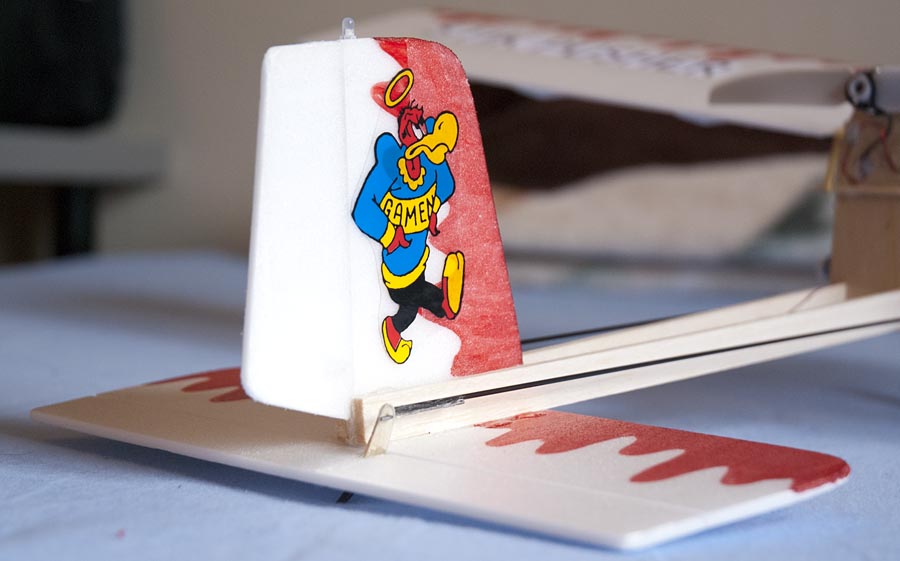

This is a small airplane I have designed for indoor flying. It is made to be easy to fly, durable and fast to build. It is based on an old model called “Tichy Stik” by J.A Benson. The original model is designed for a Cox .010 engine and meant to be built out of balsa. My version is built out of 3 mm depron (foam). I have moved the motor back and turned it around to create a pusher. This makes it more durable. I have also created a open battery tray on the top front of the fuselage for easy access. The plane is designed for a 5-7 gram outrunner with a 5 inch propeller and a 2 cell 300-500 mAh battery. The wingspan is 620 mm and the flying weight is around 80-90 grams.

My setup gives about 15 minutes flight time:

Plans: stikPusher.pdf   (1.8kB)

3D model made with “SketchUp Make”: stikPusher3Dmodel.skp   (1.4MB)
